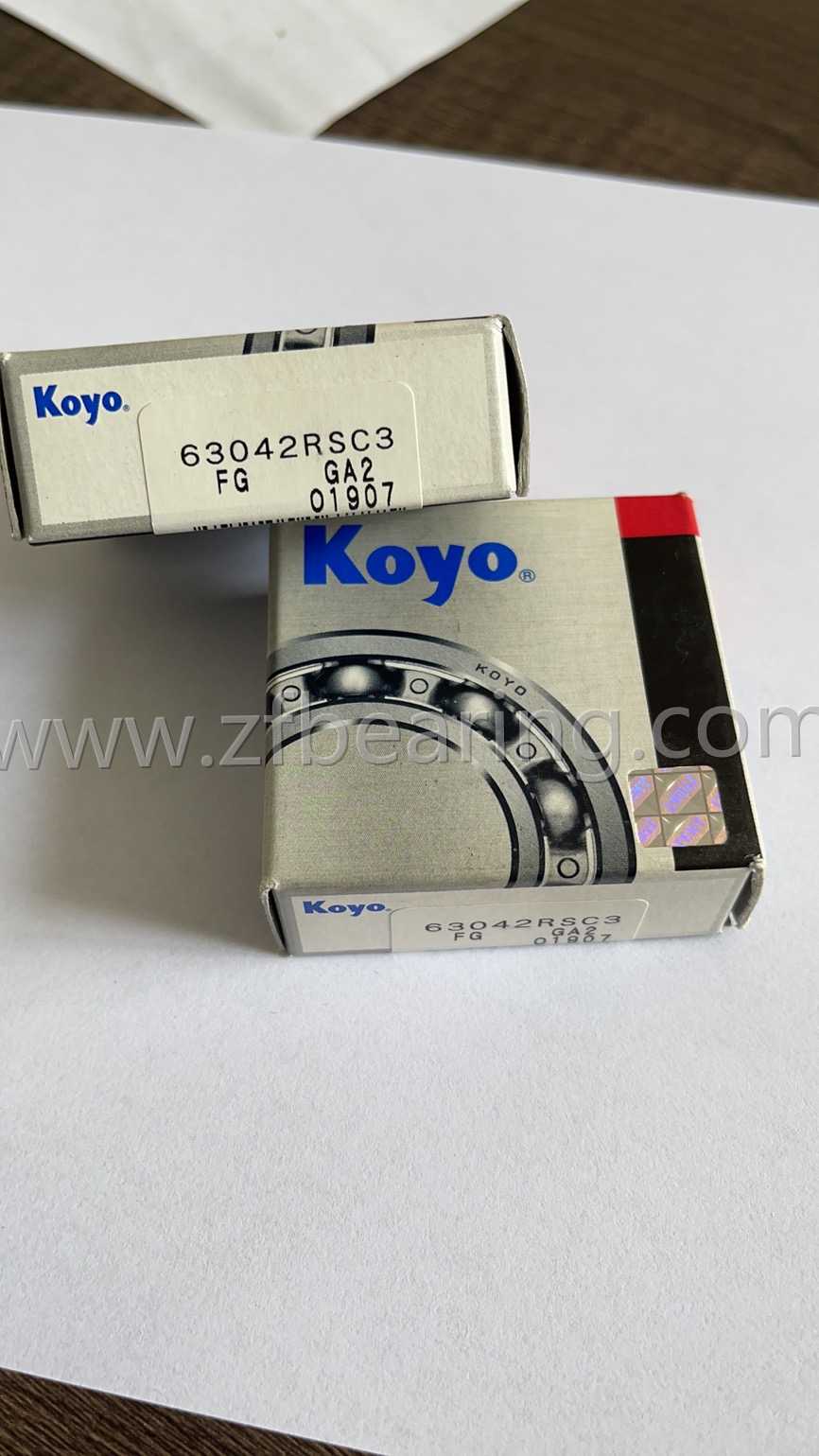

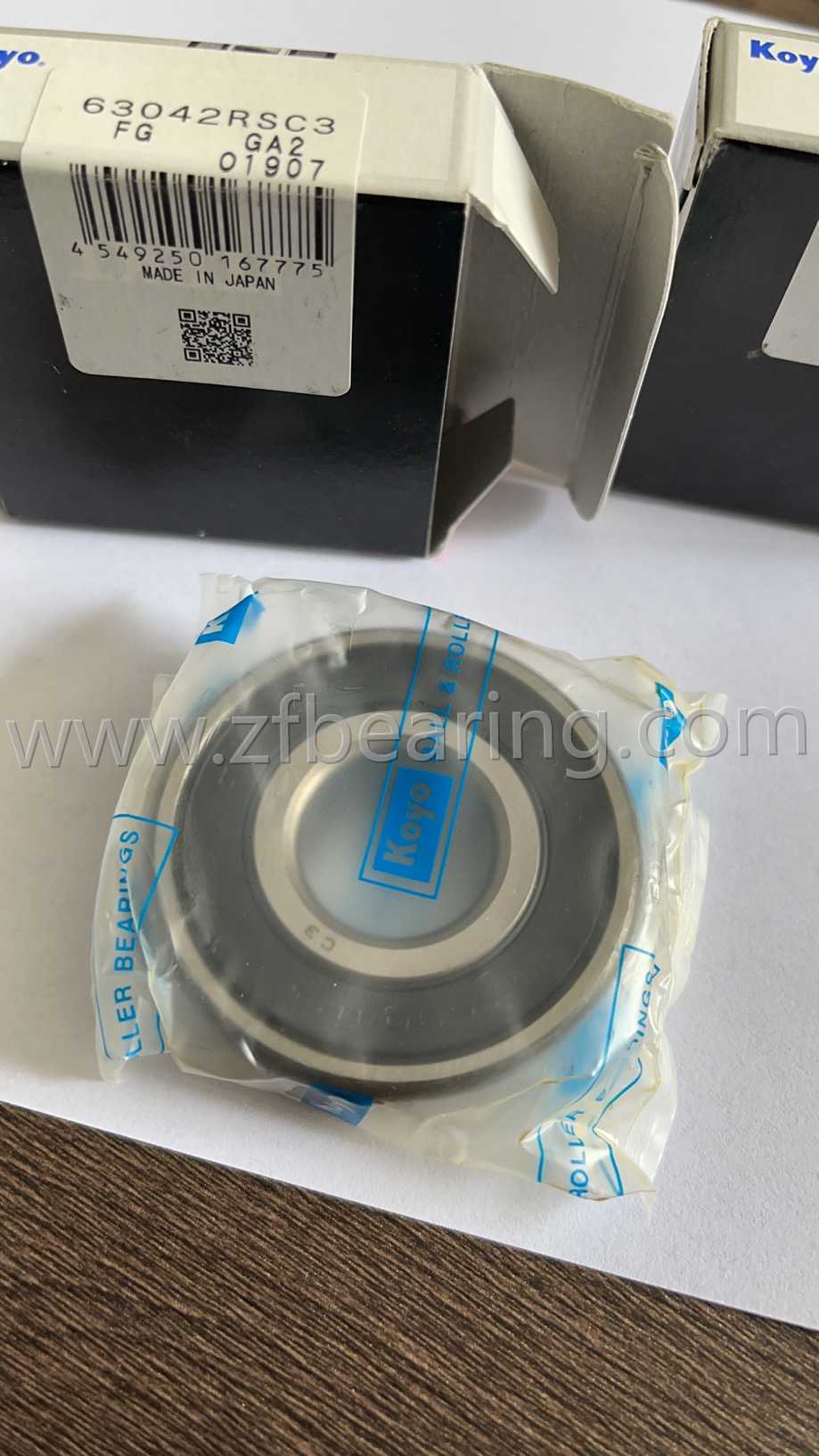

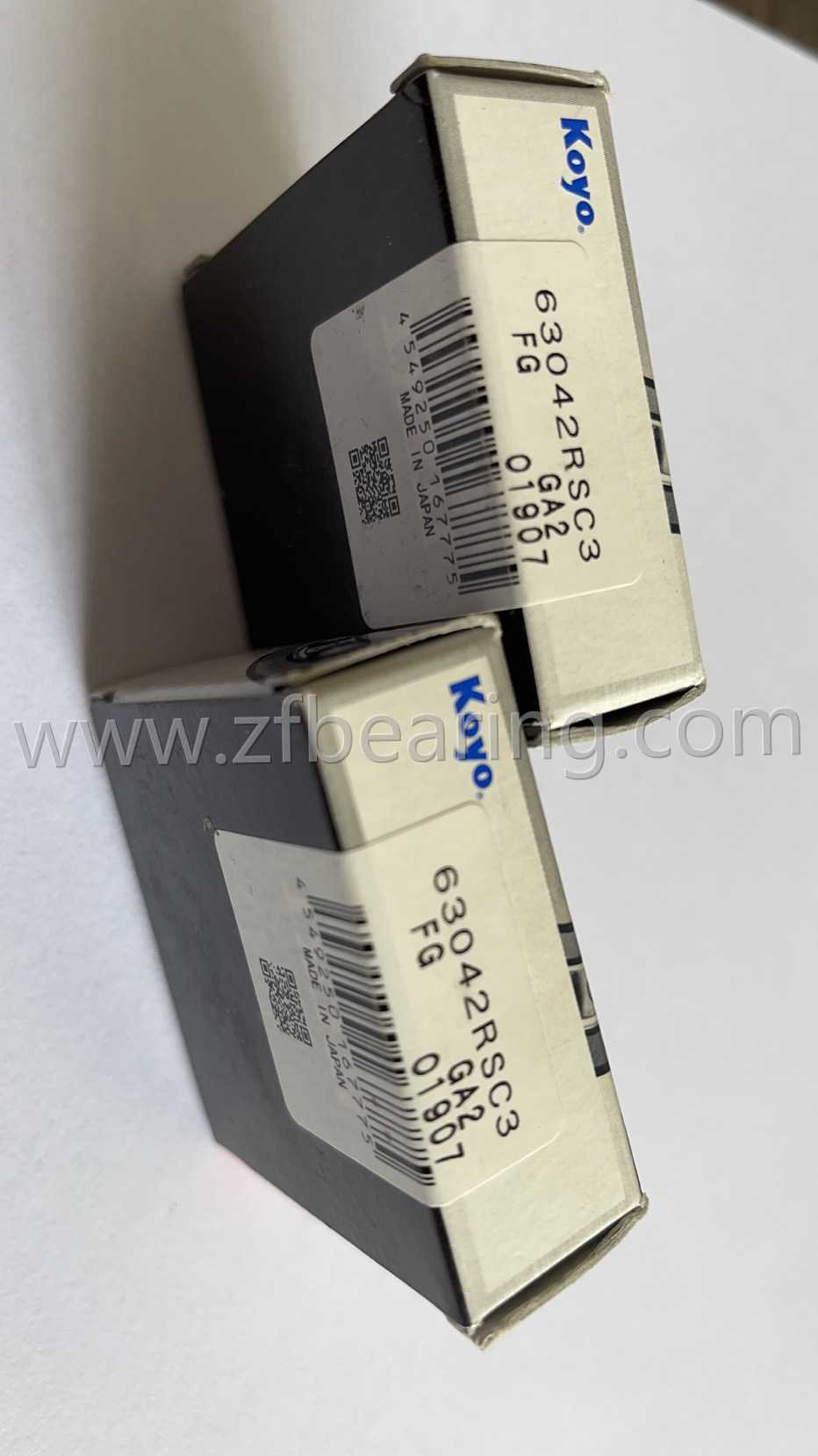

6304 2RS CM/FG KOYO DEEP GROOVE BALL BEARING SINGLE ROW

6304 2RS CM/FG KOYO  DEEP GROOVE BALL BEARING SINGLE ROW

Specifications		Mounting dimensions
d	20 mm	da(min.)	26.5 mm
D	52 mm	da(max.)	27 mm
B	15 mm	Da(max.)	45.5 mm
r(min.)	1.1 mm	ra(max.)	1 mm
Basic load ratings : Cr	19.9 kN
Basic load ratings : C0r	7.85 kN
Fatigue load limit : Cu	0.660 kN
factor : f0	12.3
Limiting speeds(Grease lub.)	9500 min-1
Limiting speeds(Oil lub.)	min-1
