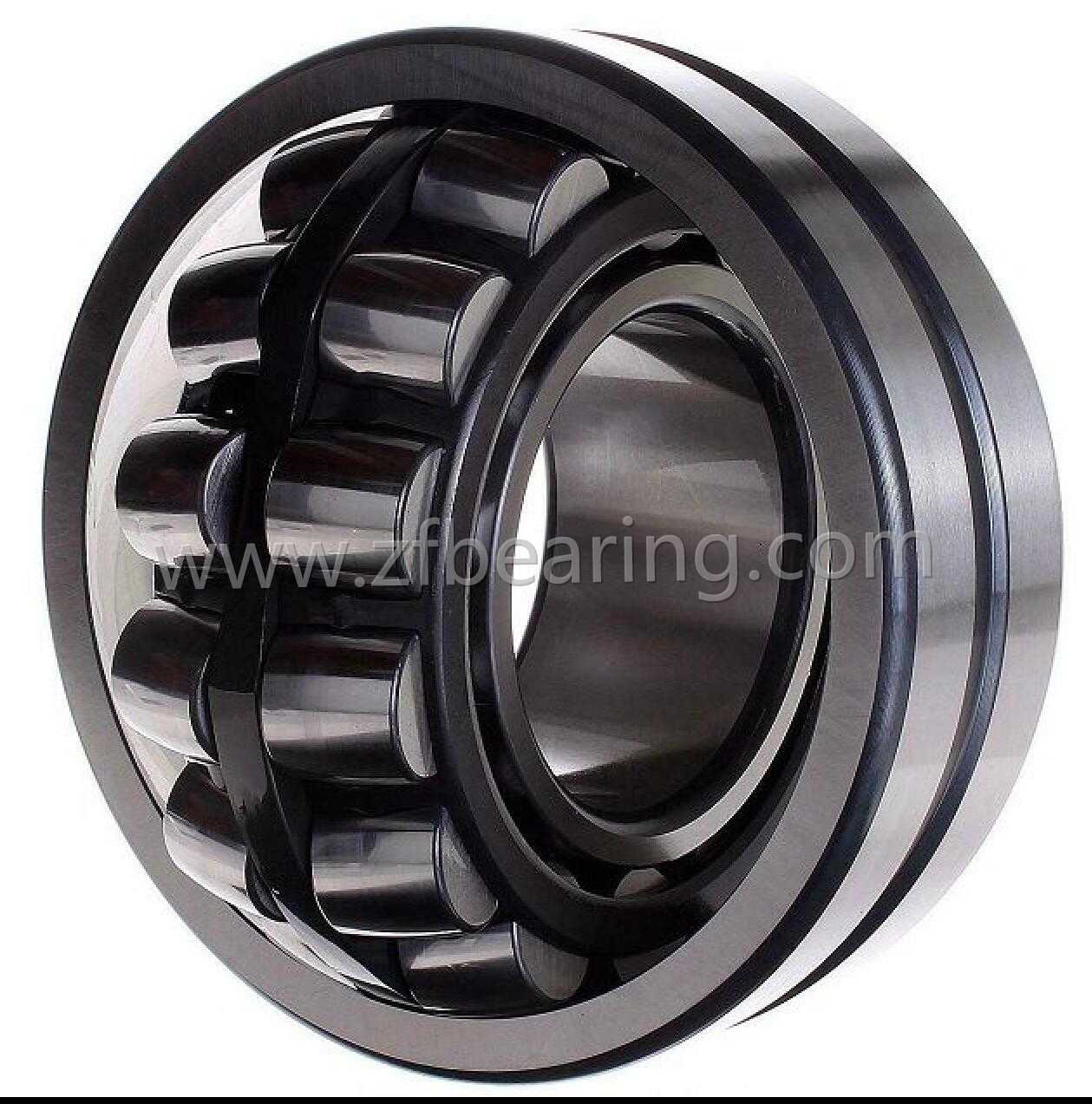

Spherical Roller Bearing

22328CCJA/W33VA405 use for Vibrating Screen

size:140*300*102mm
WEIGHT:36KGS
Grade:P5
Description:
INQUIRY EMAIL

Product Application

SKF 22328 CCJA/W33VA405 * Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.

Basic Information of SKF Spherical Roller Bearing 22328 CCJA/W33VA405:

Product Type:	Spherical Roller Bearing
Model NO.:	22328 CCJA/W33VA405
Brand :	SKF
Inner Ring(mm):	140
Outer Ring(mm):	300
Width (mm):	102
Limiting speed(r/min):	2200
Cage:	CC/ CA/ E
Shielded:	NO SEAL
Original Country:	Sweden

OTHER SERIES NUMBER:

Bore mm
40	22308 E/VA405	22308 EAS.MA.T41A	22308 W22BRC4	452308 CACM2/W502
45	22309 E/VA405	22309 EAS.MA.T41A	22309 YMW33W800C4	452309 CACM2/W502
50	22310 E/VA405	22310 EAS.MA.T41A	22310 YMW33W800C4	452310 CACM2/W502
55	22311 E/VA405	22311 EAS.MA.T41A	22311 YMW33W800C4	452311 CACM2/W502
60	22312 E/VA405	22312 EAS.MA.T41A	22312 YMW33W800C4	452312 CACM2/W502
65	22313 E/VA405	22313 EAS.MA.T41A	22313 YMW33W800C4	452313 CACM2/W502
70	22314 E/VA405	22314 EAS.MA.T41A	22314 YMW33W800C4	452314 CACM2/W502
75	22315 EJA/VA405	22315 EAS.MA.T41A	22315 YMW33W800C4	452315 CACM2/W502
80	22316 EJA/VA405	22316 EAS.MA.T41A	22316 YMW33W800C4	452316 CACM2/W502
85	22317 EJA/VA405	22317 EAS.MA.T41A	22317 YMW33W800C4	452317 CACM2/W502
90	22318 EJA/VA405	22318 EAS.MA.T41A	22318 YMW33W800C4	452318 CACM2/W502
95	22319 EJA/VA405	22319 EAS.MA.T41A	22319 YMW33W800C4	452319 CACM2/W502
100	22320 EJA/VA405	22320 EAS.MA.T41A	22320 YMW33W800C4	452320 CACM2/W502
110	22322 EJA/VA405	22322 EAS.MA.T41A	22322 YMW33W800C4	452322 CACM2/W502
120	22324 CCJA/W33VA405	22324 EAS.MA.T41A	22324 YMW33W800C4	452324 CACM2/W502
130	22326 CCJA/W33VA405	22326 EAS.MA.T41A	22326 YMW33W800C4	452326 CACM2/W502
140	22328 CCJA/W33VA405	22328 EAS.MA.T41A	22328 YMW33W800C4	452328 CACM2/W502
150	22330 CCJA/W33VA405	22330 EAS.MA.T41A	22330 YMW33W800C4	452330 CACM2/W502
160	22332 CCJA/W33VA405	22332 A.MA.T41A	22332 YMW33W800C4	452332 CACM2/W502
170	22334 CCJA/W33VA405	22334 A.MA.T41A	22334 YMW33W800C4
180	22336 CCJA/W33VA405	22336 A.MA.T41A	22336 YMW33W800C4
190	22338 CCJA/W33VA405	22338 A.MA.T41A	22238 YMW33W800C4
200	22340 CCJA/W33VA405	22340 A.MA.T41A	22340 YMW33W800C4
220	22344 CCJA/W33VA405	22344 A.MA.T41A
240	22348 CCJA/W33VA405
